Conergy
Solar
Force piston pump
|
|
|
 |

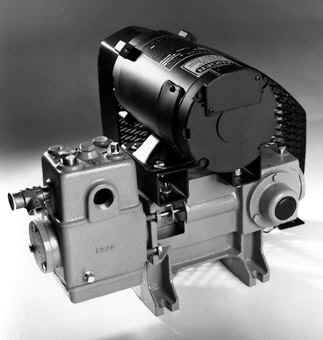

Conergy
Solar Force piston
pump
This surface pump can draw water from a shallow source (well,
spring, pond, river, lake, etc.), push it as high as 230 feet (~100 psi)
and deliver as much as 5,600 gallons per day. This positive displacement
pump is super efficient, rugged and reliable with a 20 year life
expectancy (5-10 year maintenance interval). The Solar Force pumps can
be used solar direct, from a battery or even an AC source (specify your
power source when ordering) and its mechanical drive allows for backup
engine or hand-lever operation (only for the hearty). These pumps have a
suction lift of 25’ at sea level (subtract 1’ for every 1000’ in
elevation above sea level) and they can tolerate dirty water. Conergy offers a 2 year warranty against defects in materials and workmanship on
the Solar Force piston pumps. There are three basic models of the Solar
Force piston pump available so click on the
Solar Force spec sheet
to determine which model you need and then consult the chart below to
see how much it costs. |
|
|
|
Solar Force 3010-12B |
$1,286 |
Solar Force 3020-48PV |
$1,889 |
|
Solar Force 3010-24B |
$1,286 |
Solar Force 3040-115VAC |
$1,653 |
|
Solar Force 3020-115VAC |
$1,653 |
Solar Force 3040-12B |
$1,732 |
|
Solar Force 3020-12B |
$1,653 |
Solar Force 3040-12PV |
$1,969 |
|
Solar Force 3020-12PV |
$1,889 |
Solar Force 3040-24B |
$1,732 |
|
Solar Force 3020-24B |
$1,653 |
Solar Force 3040-24PV |
$1,969 |
|
Solar Force 3020-24PV |
$1,889 |
Solar Force 3040-48B |
$1,653 |
|
Solar Force 3020-48B |
$1,653 |
Solar Force 3040-48PV |
$1,969 |
|
EZ Install Kit |
$135 |
Heavy duty pressure switch |
$75 |
|
Surge Tank (included w/PV units) |
$90 |
Foot valve (1.25") |
$28 |
*B = battery operation, PV = solar direct and VAC = 115 VAC or 230
VAC operation |
|
|
|
|
| Conergy also offers numerous pumping
accessories (float switches, pressure tanks, repair kits, replacement
motor brushes, submersible pump wire, splice kits, pitless adapters,
poly pipe, disconnects, etc.). A long term parts kit is also
available consisting of spare gaskets, rod & valve seats, two sets of
piston seals, two belts, motor brushes, cylinder sleeve and two oil
changes, call for pricing. If you don't see the parts or
accessories you are looking for
here, please email or give us
a call at 1-877-627-4768 and we'll do our best to find it. |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
